Aupha II

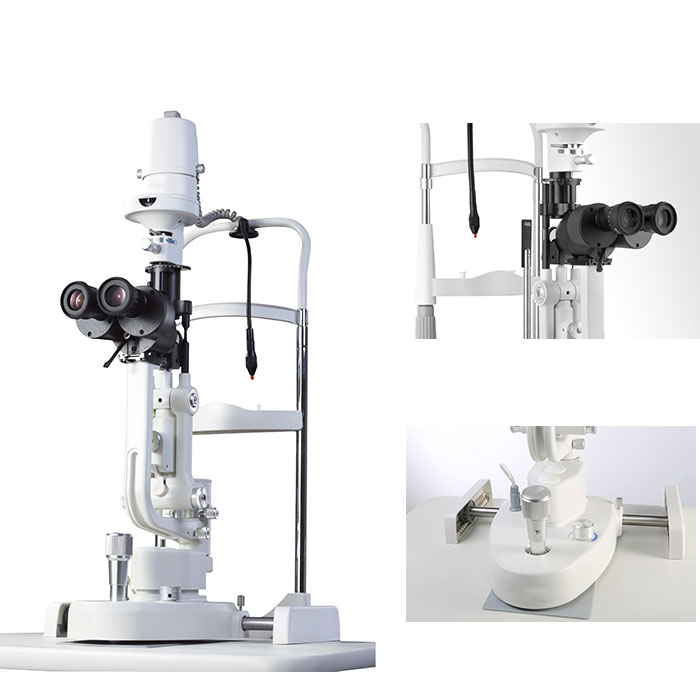

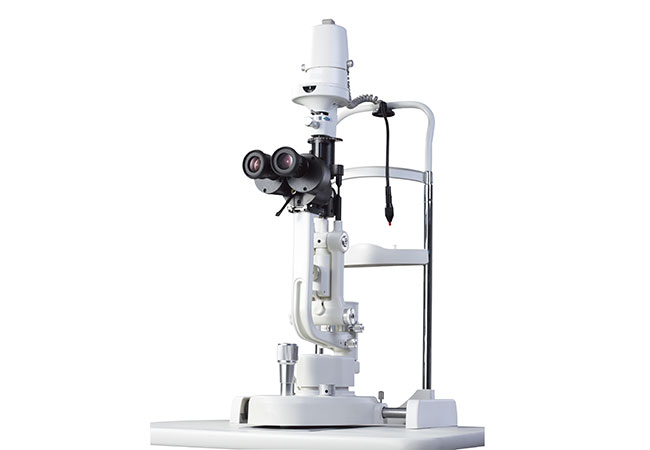

Aupha II: Halogen Slit Lamp

Magnifcation: 10x, 16x
Light source: Halogen illumination
Style: Haag Streit
Filter: Heat-absorbing, ND filter, Red-free, Cobalt Blue

Aupha II: 2 Step Halogen Slit Lamp Specifications

Microscope TypeConverging Stereoscope
Magnification Change2 steps by Objective Lens Rotation
Total Magnification10X,16X
Eyepieces10X
Angle between Eyepieces13°
Pupillary Adjustment52mm-78mm
Diopter Adjustment+5D~-8D
Field of ViewØ18mm(10X), Ø14.5mm(16X)
Slit Illumination
Slit Width Slit Length0-14mm continuous (slit becomes a circle at 14mm)
Aperture Diameters1-14mm continuous
Slit AngleØ14mm, Ø10mm, Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm 0°~180°
Slit Inclination Filters5°,10°,15°,20°
LampHeat-absorbing filter, ND filter, Red-free filter, Cobalt Blue filter 6V/20W Halogen Lamp
Luminance≥50KLX
Instrument Base
Longitudinal Movement110mm
Lateral Movement110mm
Vertical Movement30mm
Fine Base Movement15mm
Chin-rest
Vertical Movement80mm
FixationLED
Power Supply
Input Voltage220V/110V-±10%
Input Frequency50Hz/60Hz
Power Consumption30VA (max)
Output VoltageLamp 6V, Fixation 3V
Packaging
Dimension770mm x 470mm x 570mm(L/W/H)
Gross weight24kg
Net weight16kg
