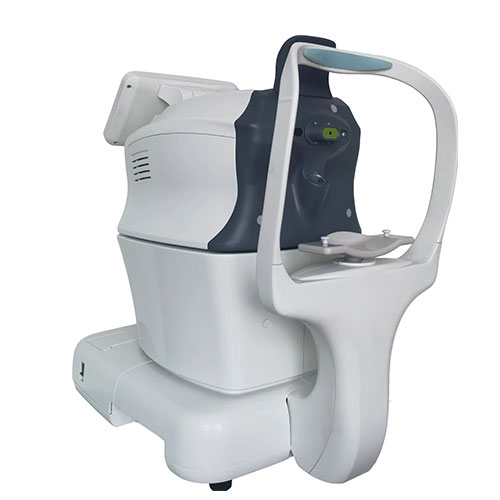

SK-5000B

Non Contact Tonometer

1. 7-inch Touch screen, can be turned 180°up and down, 60º left and right .

2. 3D tracking, motorized chinrest, full automatic Finished one eye will automatically move to another eye, till finish, do not need a doctor do anything, Auto print .

3. The accurate corneal thickness measurement function is provided to provide intraocular pressure. Compensation value and automatically calibrate the intraocular pressure value

4. The machine can be connected to the database system through DICOM3.0 to archive and read the data , which conforms to new-era hospital standard

  • Non Contact Tonometer Specifications
Measurement modeFully automatic/Automatic manual
Corneal thickness measurementMeasurement range-CCT:400-800um
Measurement increment-CCT: 10um
Light Source: Blue LED
Display7-inch 1024*600 color touch screen, support up and down 180°, left and  right 60° flip
Fixation light1 internal fixation light (green LED), 2 external fixation lights
Measurement accuracy1mmHg(0.133Kpa)
Measurement range0-60mmHg(0-8Kpa),Include automatic switching between 30/60mmHg
PrinterBuit-in thermal printer, automatic paper cutting
Data output/inputInput USB; Output: LAN/RS232C
Size and Weight500*300*500,<25kg
