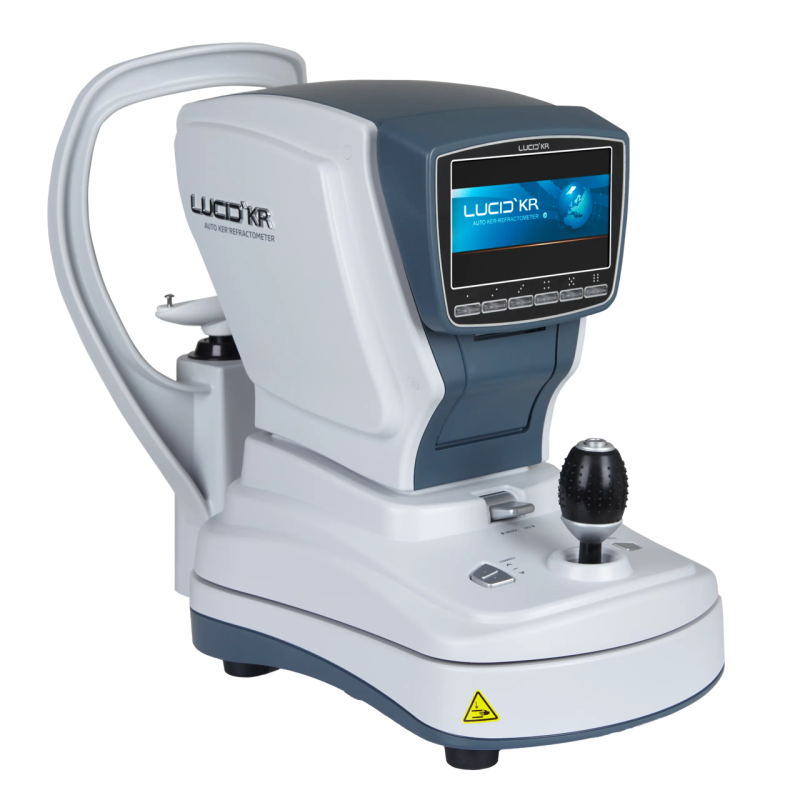

EVERVIEW Lucid Autorefractometer

The Lucid-KR Keratinometer self-refractor offers modernity and elegance for the office. The touch monitor allows the operator to work in a comfortable position and with great ease of use.
It is also comfortable for the patient, since both the forehead support and the chin support are made of a silicone material.

Screen with adjustable tilt.

Refractive measurement with hexagonal prisms.

High resolution CCD.

Android-style menu with simple icons.

Wide 7″ touch screen in color with 70º movement.

Modes:
Refractometry, keratometry, Refractometry with keratometry, measurement of the base of curvature of the contact lens.

Special functions:
Peripheral keratometry, backlight function, measurement of pupil and cornea size.
Electric height position adjustment.
High-speed printer.

Refractive ranges:

  • Spherical power -25D to +25D
  • Cylindrical power (astigmatism) 0 to ±10D
  • Cylindrical angle (astigmatism) Power 1° to 180° (step of 1°)

keratometry range:

  • Corneal curvature: 5.0 to 10.0 mm
  • Corneal refraction: 33.75 to 67.5D
  • Cylinder (astigmatism) Corneal power (astigmatism): ±9D
  • Cylindrical angle (astigmatism) Corneal power: 1° to 180° (1° Step)

Minimum pupil diameter ∅2.0 mm
